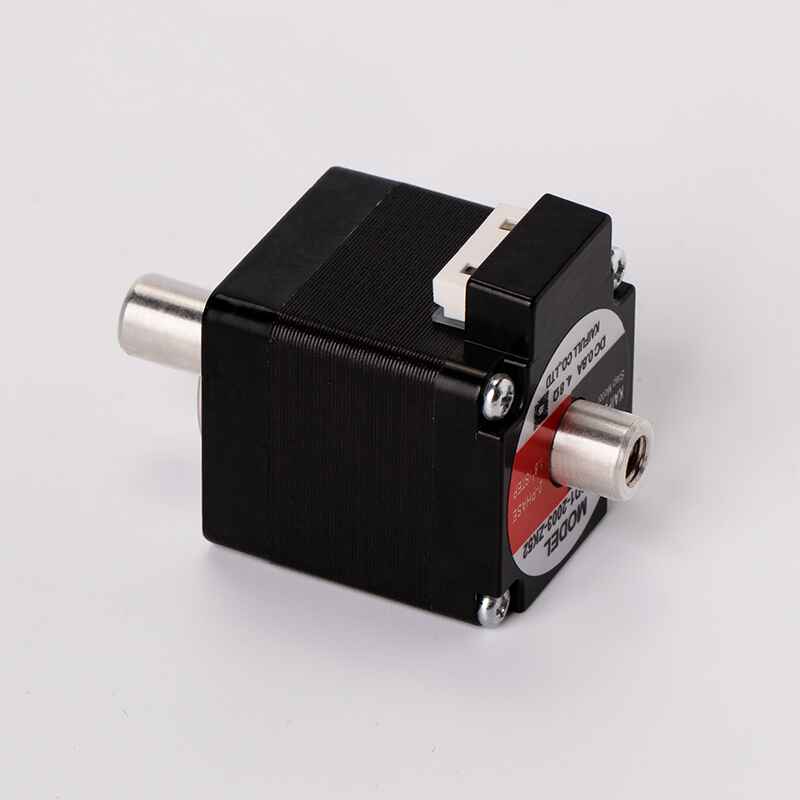

F07-28D1-2003-ZK52 Stepper Motor with 1.8° Step Angle and 60mN.m Holding Torque
|

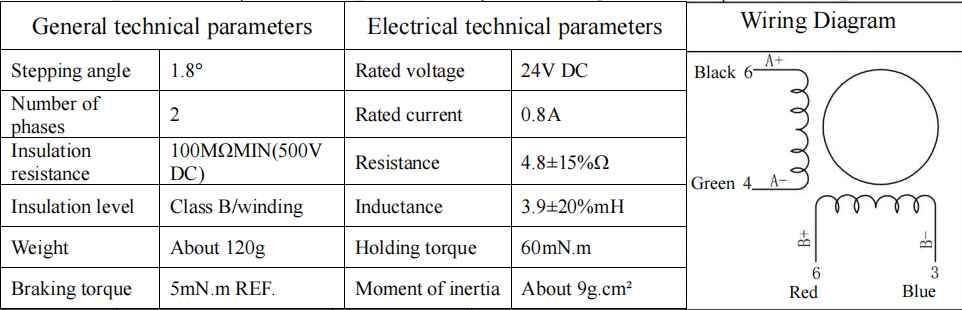

General technical parameters |
Electrical technical parameters |
||
|
Stepping angle |
1.8° |
Rated voltage |
24V DC |
|
Number of phases |
2 |
Rated current |
0.8A |
|
Insulation resistance |
100MΩMIN(500V DC) |
Resistance |
4.8±15%Ω |
|
Insulation level |
Class B/winding |
Inductance |
3.9±20%mH |
|
Weight |
About 120g |
Holding torque |
60mN.m |
|
Braking torque |
5mN.m REF. |
Moment of inertia |
About 9g.cm² |
