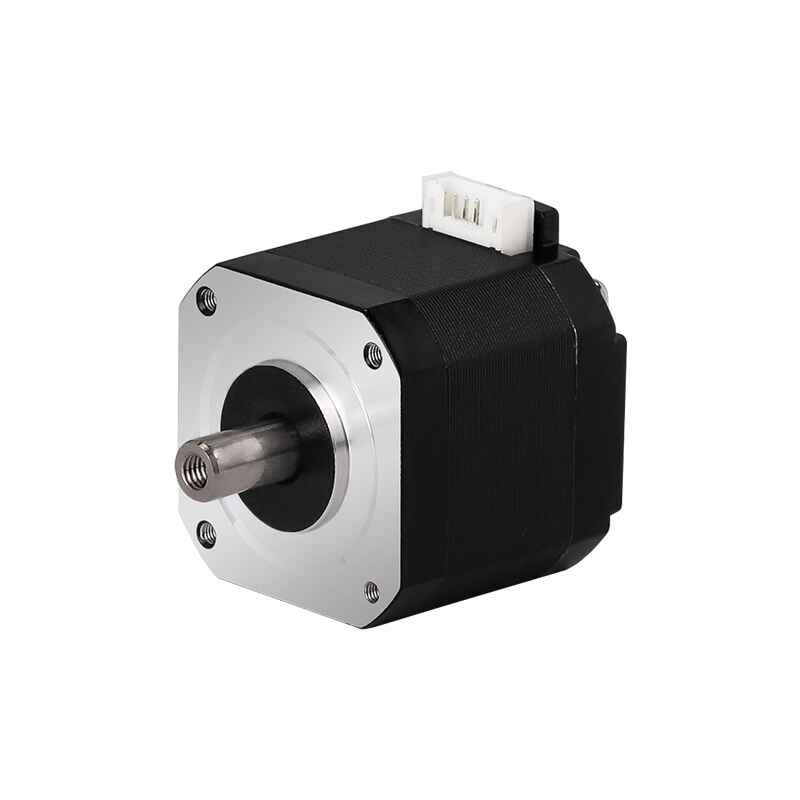

F07-43D1-4002-ZK52 High Torque Stepper Motor, 1.8° Step Angle, 380mN.m Holding Torque
|

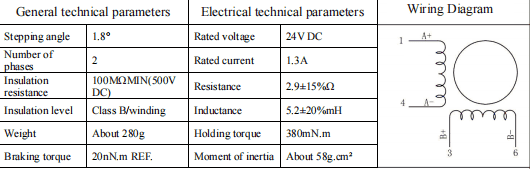

General technical parameters |
Electrical technical parameters |
||
|
Stepping angle |
1.8° |
Rated voltage |
24V DC |
|
Number of phases |
2 |
Rated current |
1.3A |
|
Insulation resistance |
100MΩMIN(500V DC) |
Resistance |
2.9±15%Ω |
|
Insulation level |
Class B/winding |
Inductance |
5.2±20%mH |
|
Weight |
About 280g |
Holding torque |
380mN.m |
|
Braking torque |
20nN.m REF. |
Moment of inertia |
About 58g.cm² |
